HVAC Dryer
Part Number
760-409
Voltage
120 V
Voltage Range
102 to 132 V
Amps
<5.0
RTR
40-200 Ohms
Time to Temp
≤ 20 seconds
Max Temp at 132V
<2900F

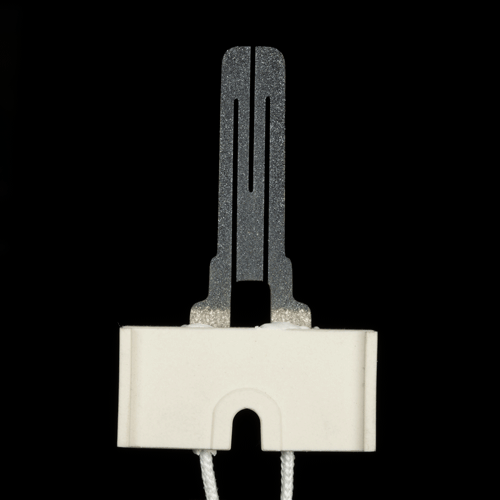

Igniter Material
Recrystallized Silicon Carbide
Insulator Material
2 inch wide ceramic holder made from steatite shown. Cordierite and alumina holders also available in a variety of configurations.
Lead Wires
200ºC temperature rating typical. Options for 250ºC, 450ºC and 550ºC ratings available in a variety of lengths and terminations.
Lead Wire Voltage
300 Volt
Approval
CSA
Control Compatibility
All major manufacturers' systems
