Range Hot Surface Igniter
Part Number
760-422
Voltage
120 V
Voltage Range
102 to 132 V
Amps
3.3 - 3.7
RTR
65-120 Ohms
Time to Temp
≤ 17 seconds
Max Temp at 132V
<2900F
Igniter Material
Recrystallized silicon carbide
Insulator Material

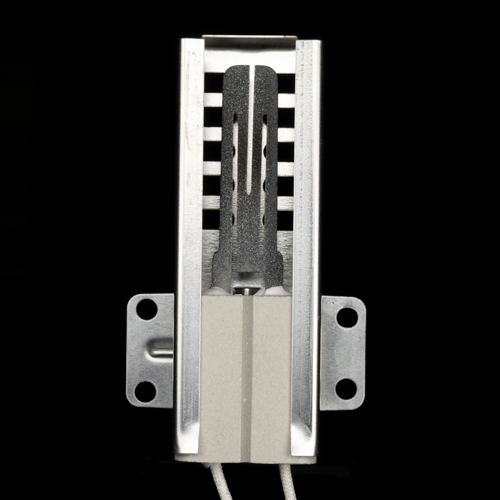

Standard ceramic holder made from cordierite shown with full shield bracket. Steatite and alumina holders also available in a variety of configurations
Lead Wires
550°C temperature rating typical. Options for 200°C, 250°C, and 450°C ratings available in a variety of lengths and terminations
Lead Wire Voltage
300 Volt
Approval
CSA
Control Compatibility
All major manufacturers’ systems and bi-metal gas valves
Other part numbers associated with this insulator:
760-425
760-426
760-465
760-448
760-449
760-501
